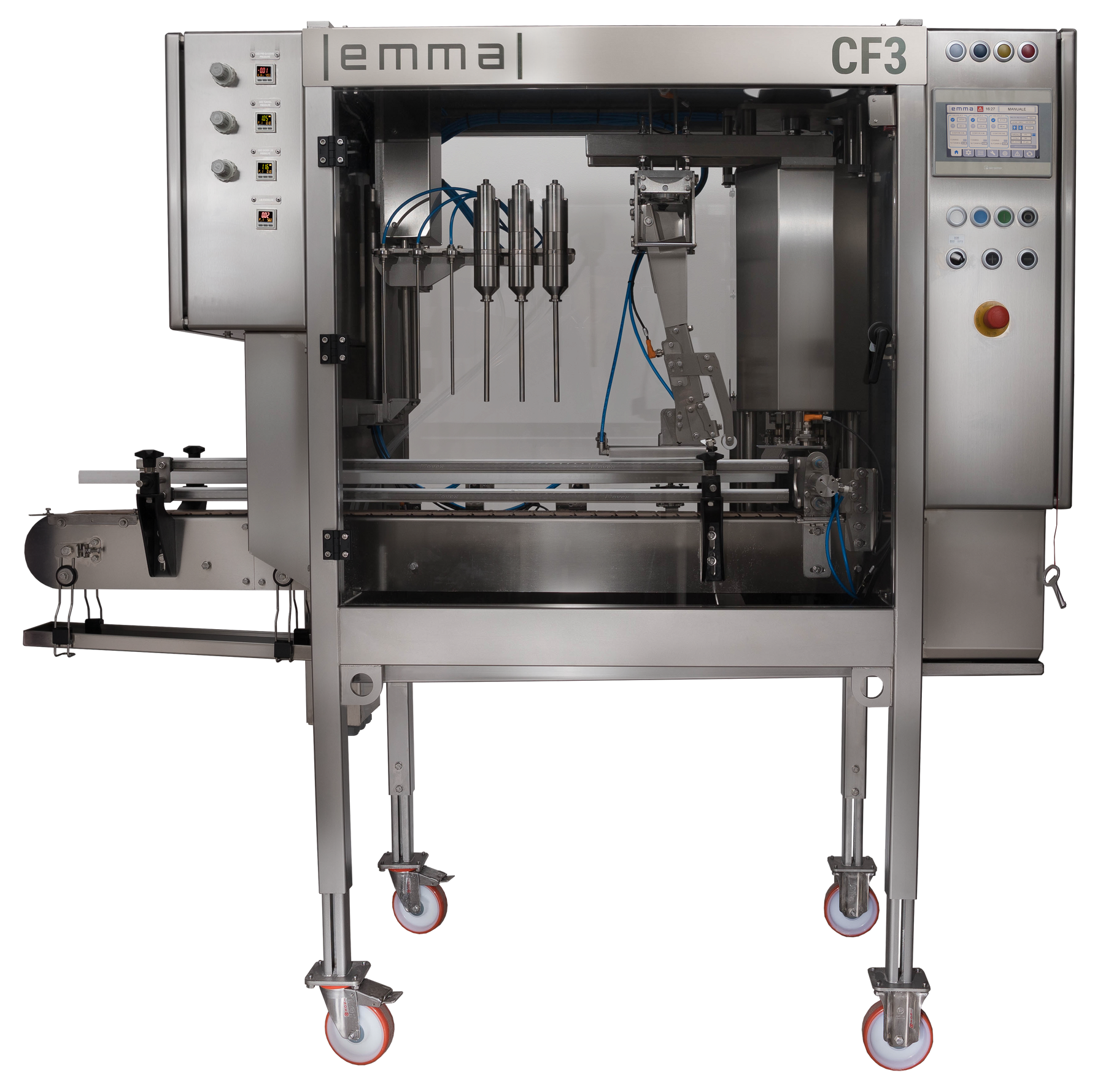

CF3

AUTOMATED CANNING SYSTEM

The CF3 is a compact, reduced-complexity machine for can filling and seaming which guarantees the maximum flexibility in the processing of the product


REQUEST A QUOTE PRODUCT BROCHURE

  • Overview

    • 15 cans/minute of carbonated beer, up to 22 cans/minute depending on can size and product properties
    • Complete stainless steel robust construction
    • Filling quantities via flowmeter or timer filler

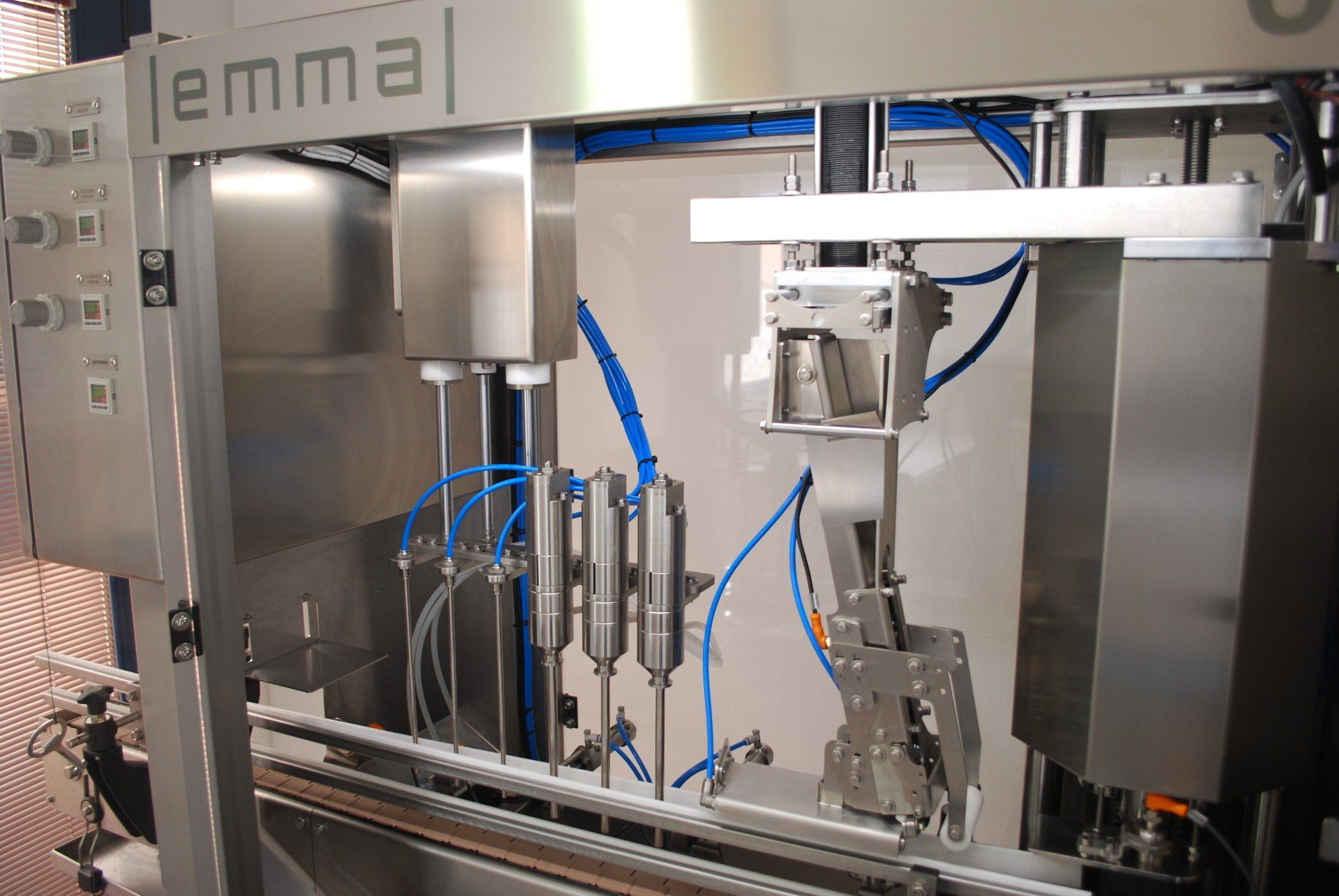

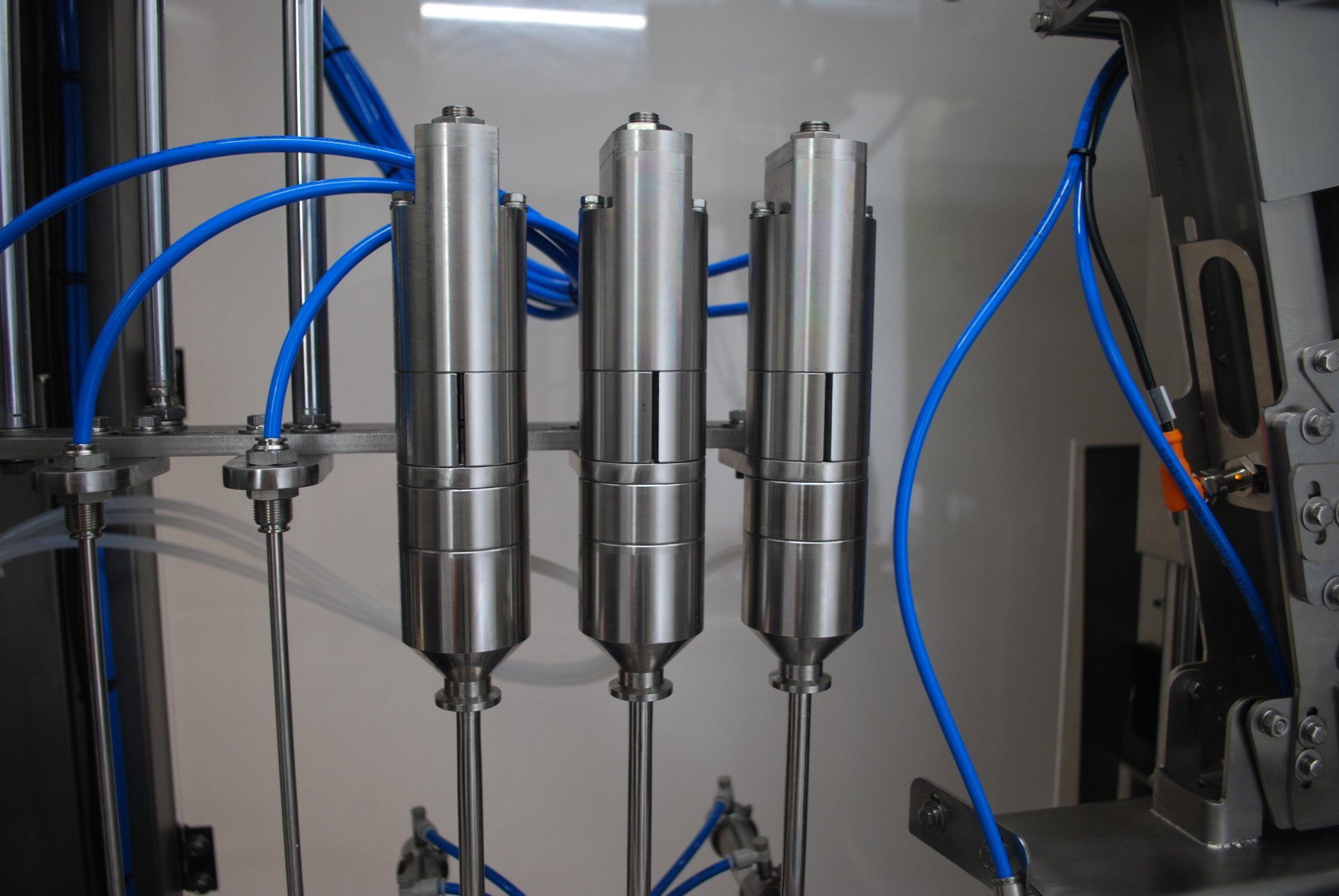

    • Hygienic filling valve design with inner and outer CIP easy washing
    • CO2 pre-gassing unit, CO2 tunnel gassing unit and CO2 underlid gassing unit can be fully and indipendently set by operator

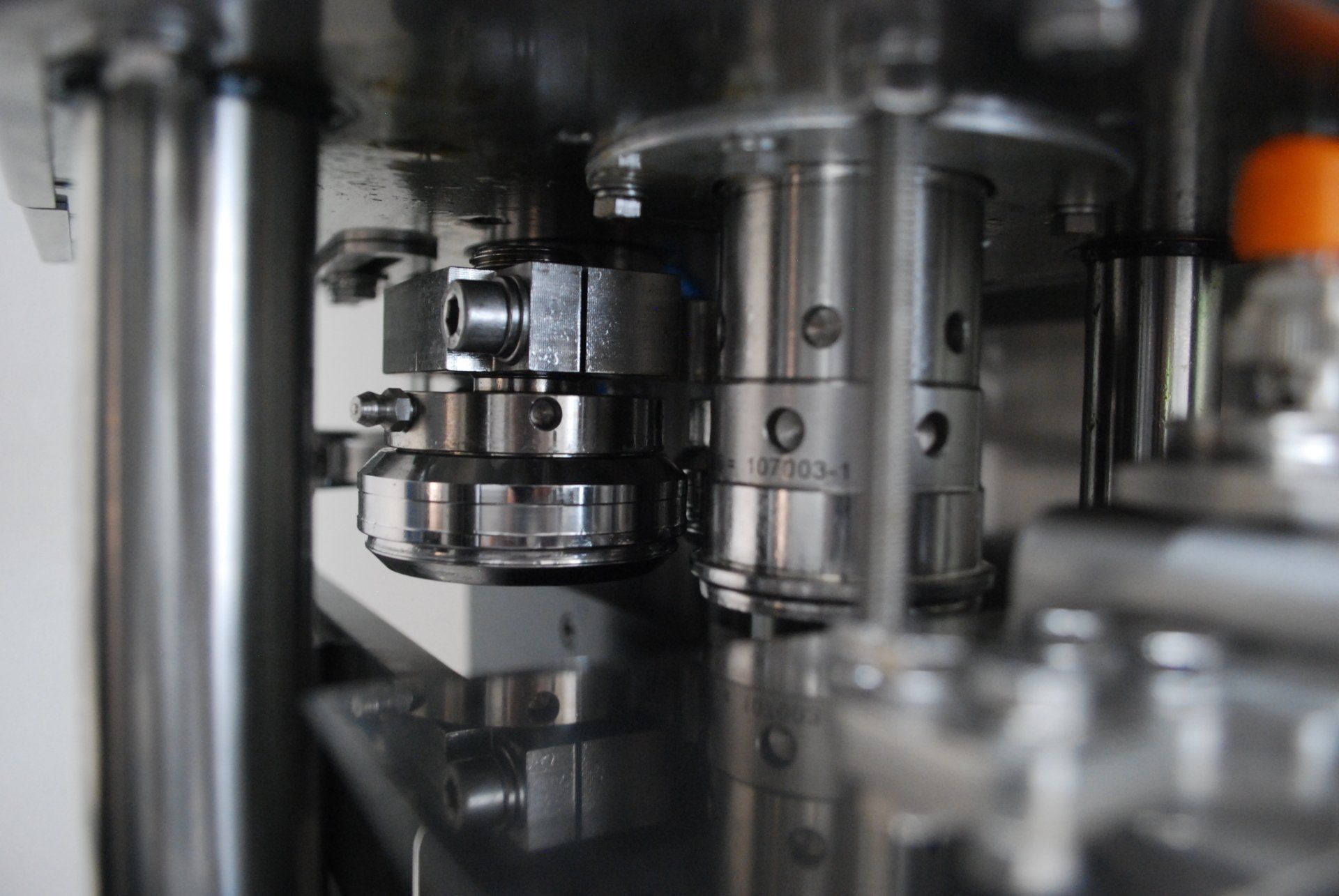

    • Electronic seamer for maximum reliability and repeatability

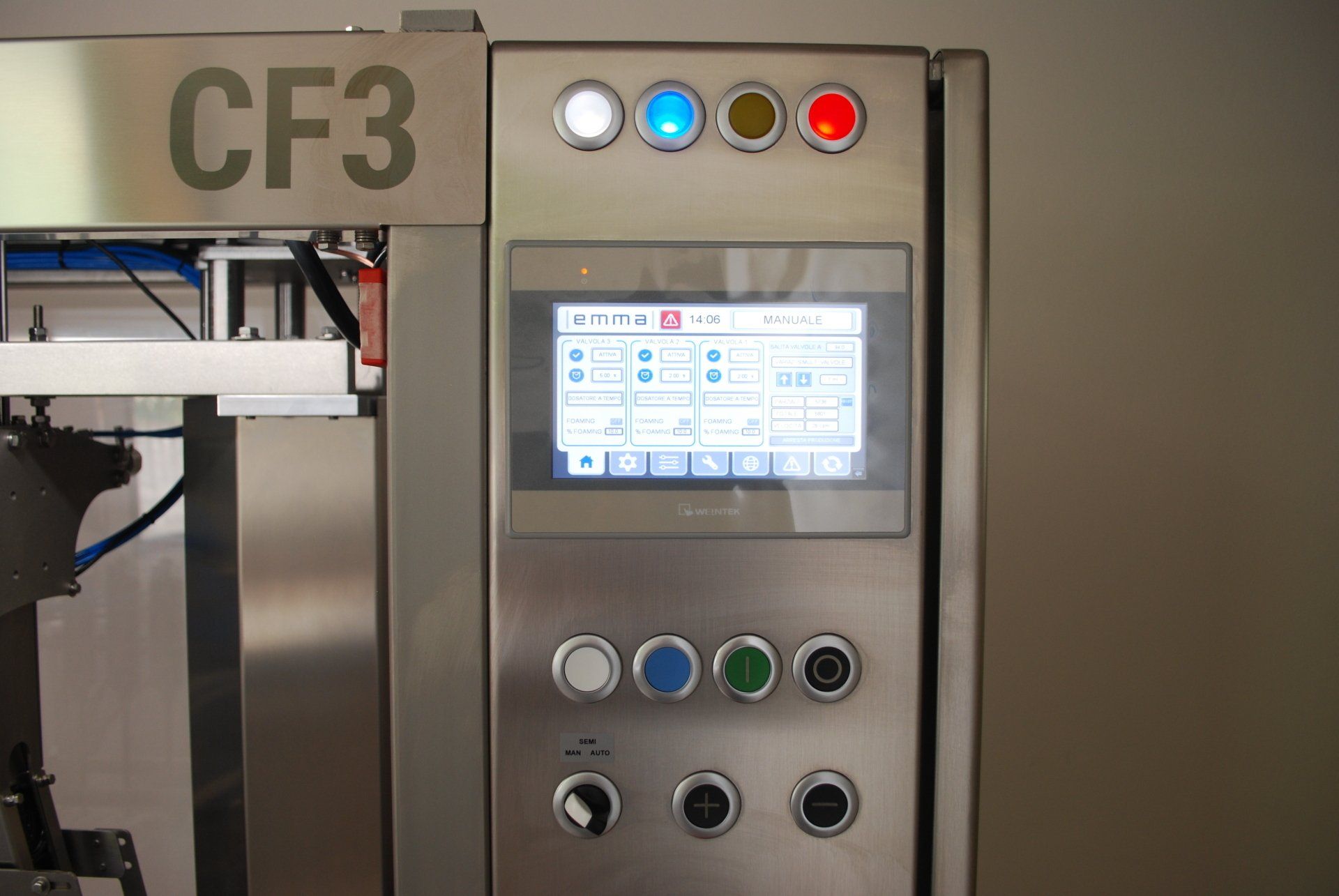

    • User friendly HMI touch screen interface integrated in the machine
    • Simple change over between different can size
    • Low energy consumption
    • Easy connection with other machines
    • CE compliant

  • Advantages

    • Simple to use
    • Easy movable, rolls as option
    • Compact size
    • Robust construction, build to last
    • Highly efficient

  • Products

    • Craft beer
    • Hard Seltzer
    • Wine
    • Kombucha and tea
    • Cocktail
    • Juice
    • Cold brew coffe
    • Craft cider
    • Water

  • Utilities

    • Power: 1200 W - 230V monophase 50 hz
    • Air: 180 Nl/min at 6 bar - clean and dry compressed air
    • Co2: 4 bar - 8mm pipe
    • Water: 1/2inch tube
    • Beer: Temperature 0-2°C - Carbonation 4,5-5,5 g/L CO2

  • FAQ: frequently asked questions

    • Is the machine automatic?

    - The CF3 machine is fully automatic

    • Does it handle isobaric beer?

    - The machines handle carbonated beer without any problems, up to 5.5 grams/litre of CO2 (carbon dioxide)

    • Does the machine close the can?

    - The machine fills, crimps (closes) and finally rinses the can externally

    • Does the machine rinse the incoming cans?

    - No, but it is always possible to add an external device to rinse the cans before they enter the machine.

    • Does the machine label the can?

    - Filling machines do not put a label on the can, but can be put in line with a labelling machine.

    • What does the hourly speed of the machine depend on?

    - On the type of product and its carbonation.

    • Can the machines be customised for specific requests?

    -We can design and integrate complete systems in response to our customers' specific requirements.

    • Can I see the machine in operation?

    -We are happy to provide contacts of our customers to watch the machine in operation.

    • Can I operate the machine directly from a drum?

    -Yes, filling from pressure tank, non-pressure tank or drum is possible.

    • Is valve flushing difficult?

    -No, valve flushing is very simple: they are set up for recirculating CIP to minimise the amount of flushing solution used. The valves are also set up for bi-directional washing.

    • Can I do more than one can format with the same machine?

    -Yes, the machines are supplied for 1 (one) can format but on request it is possible to do more than one format with the same machine.

    • Are the machines made in Italy?

    -Yes, all machines are of Italian design, development and production.

    • How long is the warranty?

    - The warranty on all our machines is 1 year.

CF3

EMMA SRL CANNING SYSTEM

CF3 FOR MADONE

The Madone brewery expresses its craftsmanship in a modern way with passion and a pinch of madness: it is a young, lively brewery, always full of ideas and new craft beers to pair with the food proposal.

CF3 FOR ELVO BEER

ELVO is a family-run brewery that produces low-fermentation craft beers according to ancient German traditions, enhancing local resources and highlighting all the quality of the territory.

CF3 FOR MASO ALTO

Andrea and Leonardo have identified an ancient Trentino farm located on the high hill of Pressano (Lavis) as the place where they can give life to their dream: to produce organic and artisanal beers. From here MASO ALTO was born, a concrete reality to be tasted.

CF3 FOR MAZAPEGUL

The craft brewery Mazapégul is located in Civitella di Romagna. It is surrounded by greenery and offers a wide range of craft beers and delicious dishes, which together create a unique experience.

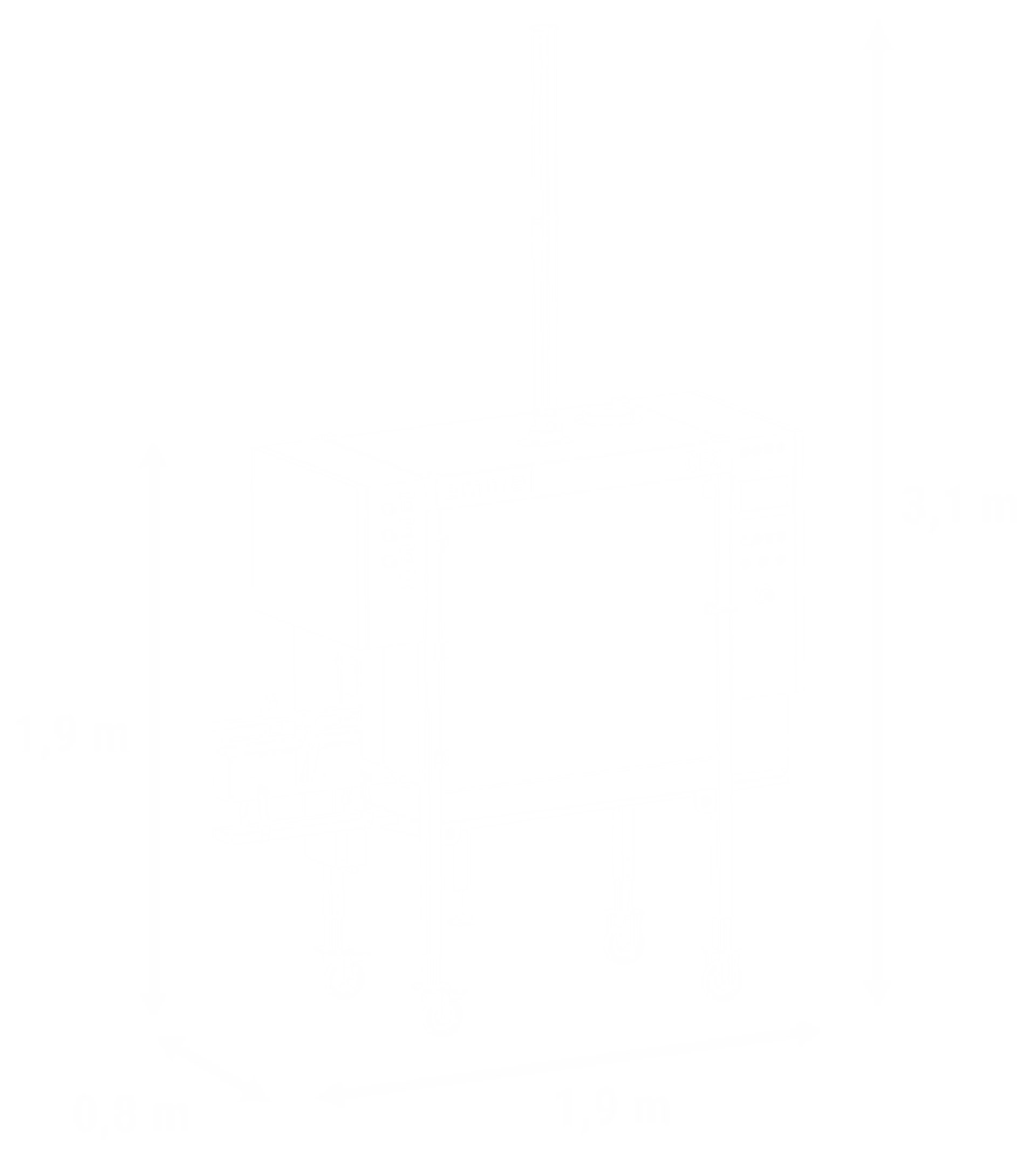

TECHNICAL FEATURES

Riempitrice ed aggraffatrice di lattine automatica
Weight Power Air Consumption Production
450 Kg 1,3 KW 180 Nl/min approx 900 c/h

EMMA FILLERS CAN HANDLE CANS OF ALL SIZES

You can make more than one can format with the same machine, the machines are supplied for 1 (one) can format but on request it is possible to make more than one format with the same machine.
