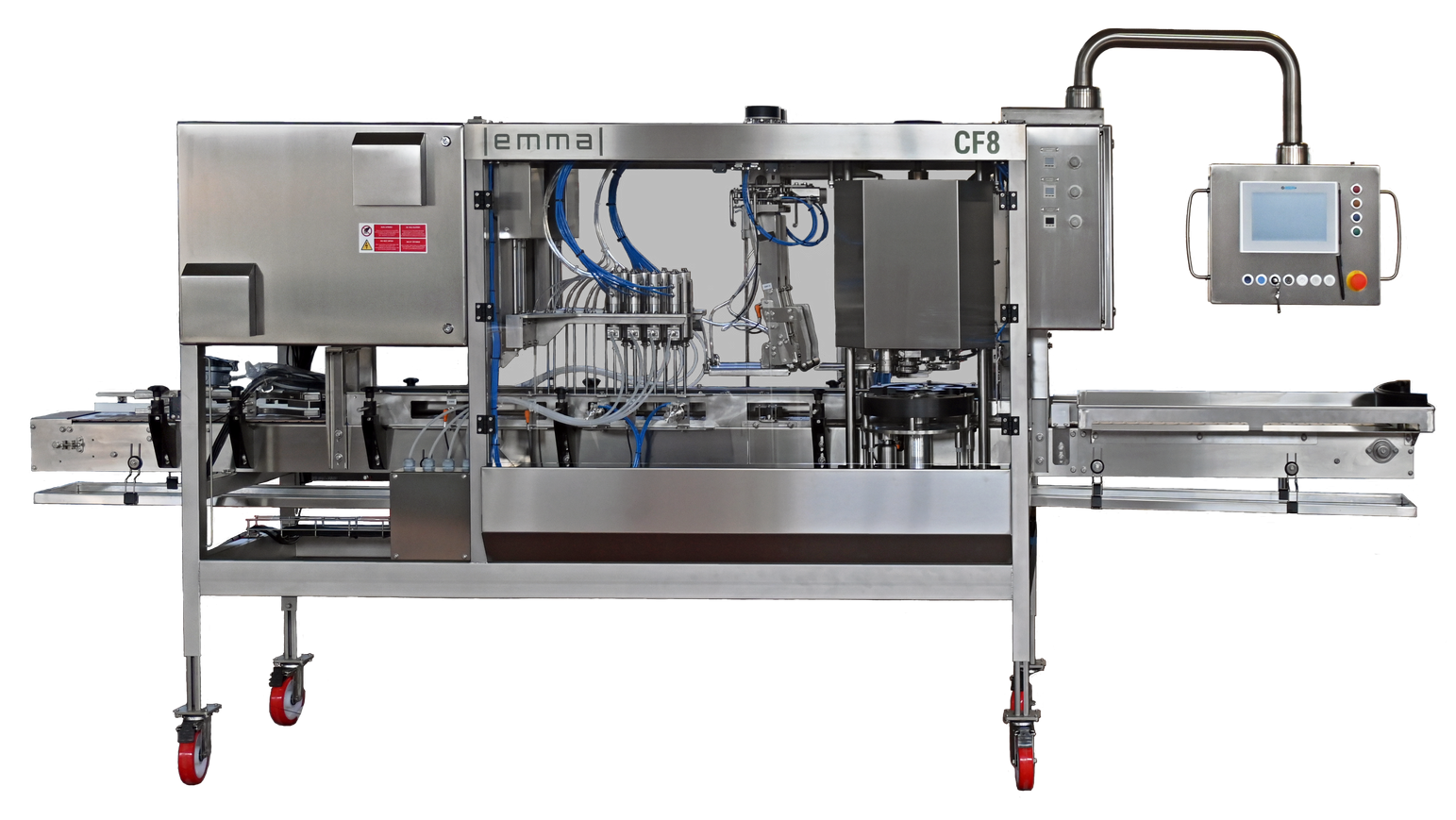

CF8

CANNING MACHINE

CF8 is a low-complexity can filling and seaming monoblock that guarantees maximum flexibility and efficiency in product handling.

REQUEST A QUOTE PRODUCT BROCHURE

  • Overview

    • Up to 60 cans per minute depending on can size and product properties
    • Solid stainless steel construction
    • Product dosing via flowmeter or timer
    • Clean design product valves with internal and external CIP flushing possibility
    • CO2 pre-fluxing, CO2 tunnel after filling and CO2 flushing under the cap can be adjusted and managed independently
    • Double electronic seamer for maximum repeatability and reliability of closures
    • HMI touch screen panel integrated in machine
    • Easy can format changeover
    • Remote assistance and Industry 4.0 readiness always included
    • Low energy consumption
    • CE compliant

  • Advantages

    • Simple to use
    • Easily movable, wheels as an option
    • Compact dimensions
    • Robust construction, built to last
    • High efficiency

  • Products

    • Beer
    • Hard Seltzer
    • Wine
    • Kombucha and tea
    • Cocktails
    • Juices
    • Cold brew coffee
    • Craft cider
    • Water

  • Utilities

    • Power: 3 Kw
    • Air: 500 Nl/min at 6 bar - clean, dry compressed air
    • Weight: 950 Kg

  • FAQ: Frequently Asked Questions

    • Is the machine automatic?

    - The CF8 machine is fully automatic


    • Does it handle isobaric beer?

    - The machines handle carbonated beer without any problems, up to 5.5 grams/litre of CO2 (carbon dioxide)


    • Does the machine close the can?

    - The machine fills, crimps (closes) and finally rinses the can externally


    • Does the machine rinse the incoming cans?

    - No, but it is always possible to add an external device to rinse the cans before they enter the machine.


    • Does the machine label the can?

    - Filling machines do not put the label on, but you can put a labeller on line.


    • What does the hourly speed of the machine depend on?

    - On the type of product and its carbonation.


    • Can the machines be customised for specific requests?

    -We are able to design and integrate complete systems in response to our customers' specific requirements.


    • Can I see the machine in operation?

    -We are always in contact with our customers to watch the machine in operation: we welcome you to ask manufacturers for information and suggestions.


    • Can I operate the machine directly from a drum?

    -Technically it is possible but not advisable given the speed of the machine.


    • Is valve flushing difficult?

    -No, valve flushing is very simple: they are set up for a recirculating CIP that minimises the amount of flushing solution used. The valves are also set up for bi-directional flushing.


    • Can I do more than one can format with the same machine?

    -Yes, the machines are supplied for 1 (one) can format but on request it is possible to make more than one format with the same machine.


    • Are the machines made in Italy?

    -Yes, all machines are of Italian design, development and production.


    • How long is the warranty?

    - The warranty on all our machines is 1 year.

TECHNICAL FEATURES

Riempitrice ed aggraffatrice di lattine automatica
Weight Power Air Consumption Production
950 Kg 3 KW 500 Nl/min Up to 3000 c/h

CF8 FOR INTROFOODS

EMMA SRL AUTOMATED CANNING SYSTEM

Introfoods is a young kombucha company located near Trieste (Italy).

Sebastian and Roberta, the owners of the company, have made kombucha their profession as well as their passion, and recently Introfoods has also entered the large-scale distribution.

EMMA FILLING MACHINES CAN HANDLE CANS OF ALL FORMATS

You can make more than one can format with the same machine, the machines are supplied for 1 (one) can format but on request you can make more than one format with the same machine.
